Guardian

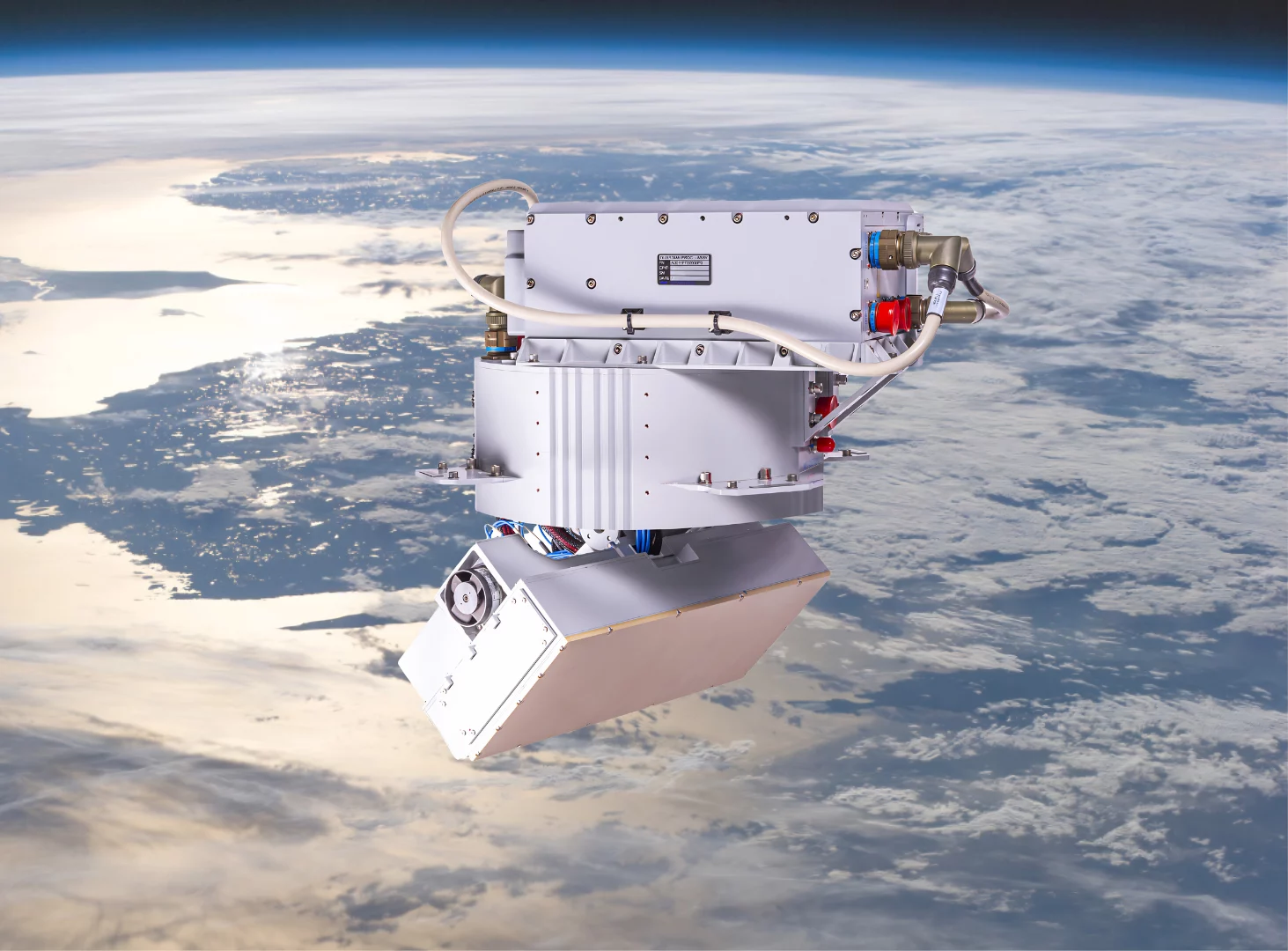

The GUARDIAN is a Multi-Mode X-band advanced multichannel Synthetic Aperture Radar (SAR) for surveillance of sea, land, borders and critical wide areas.

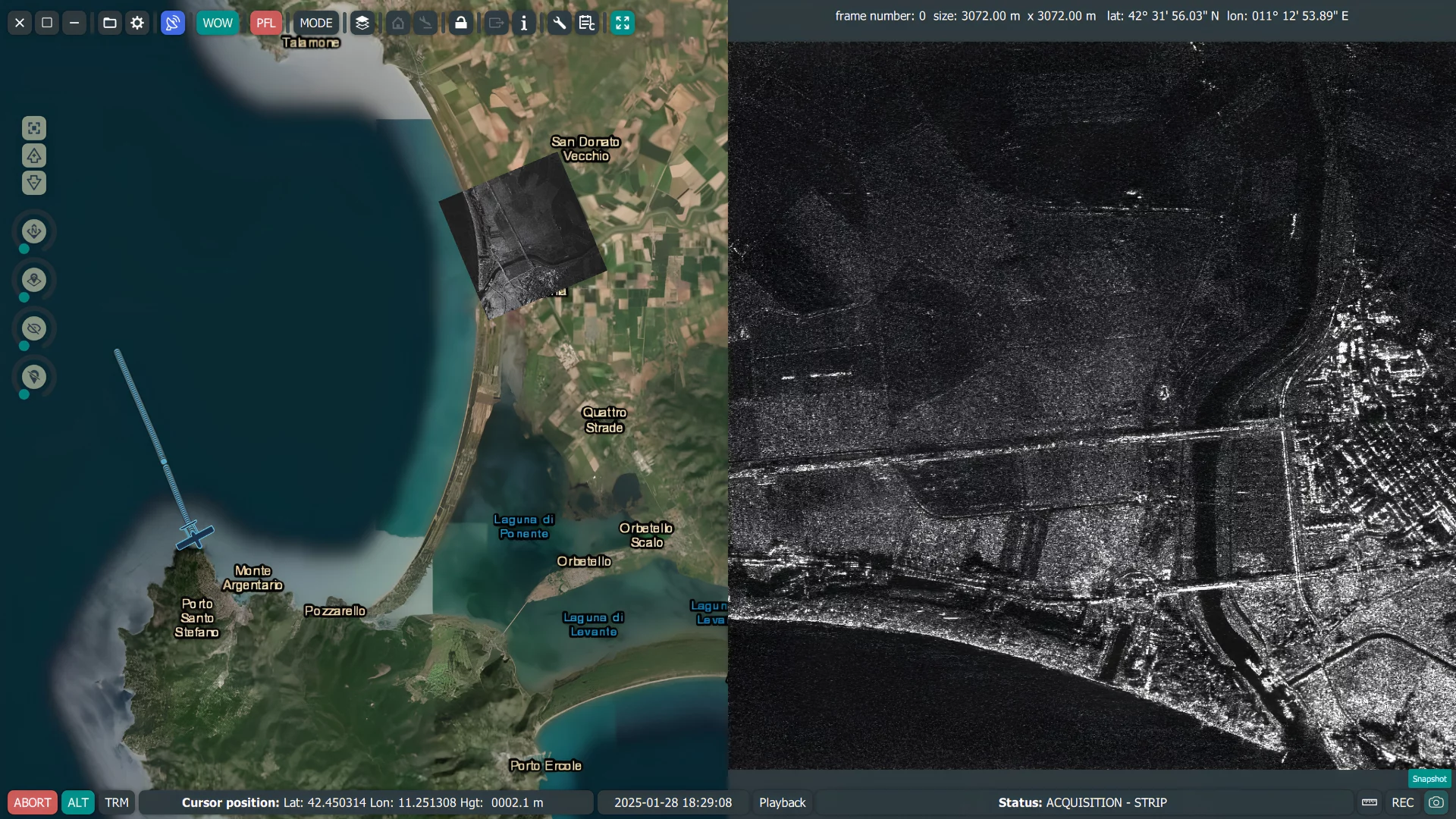

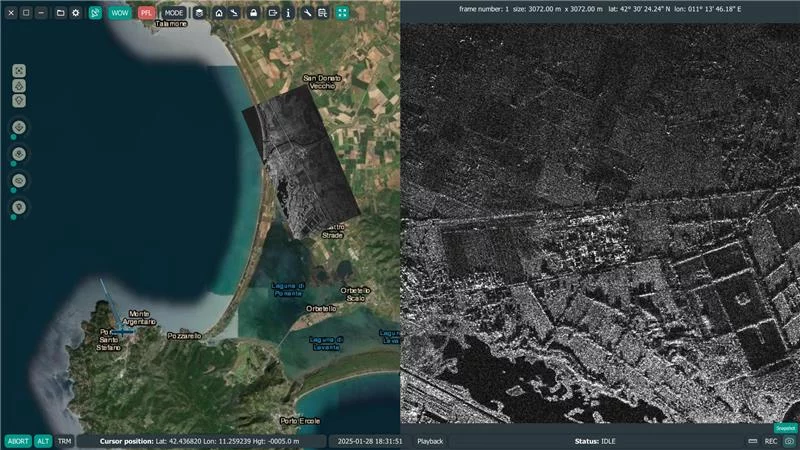

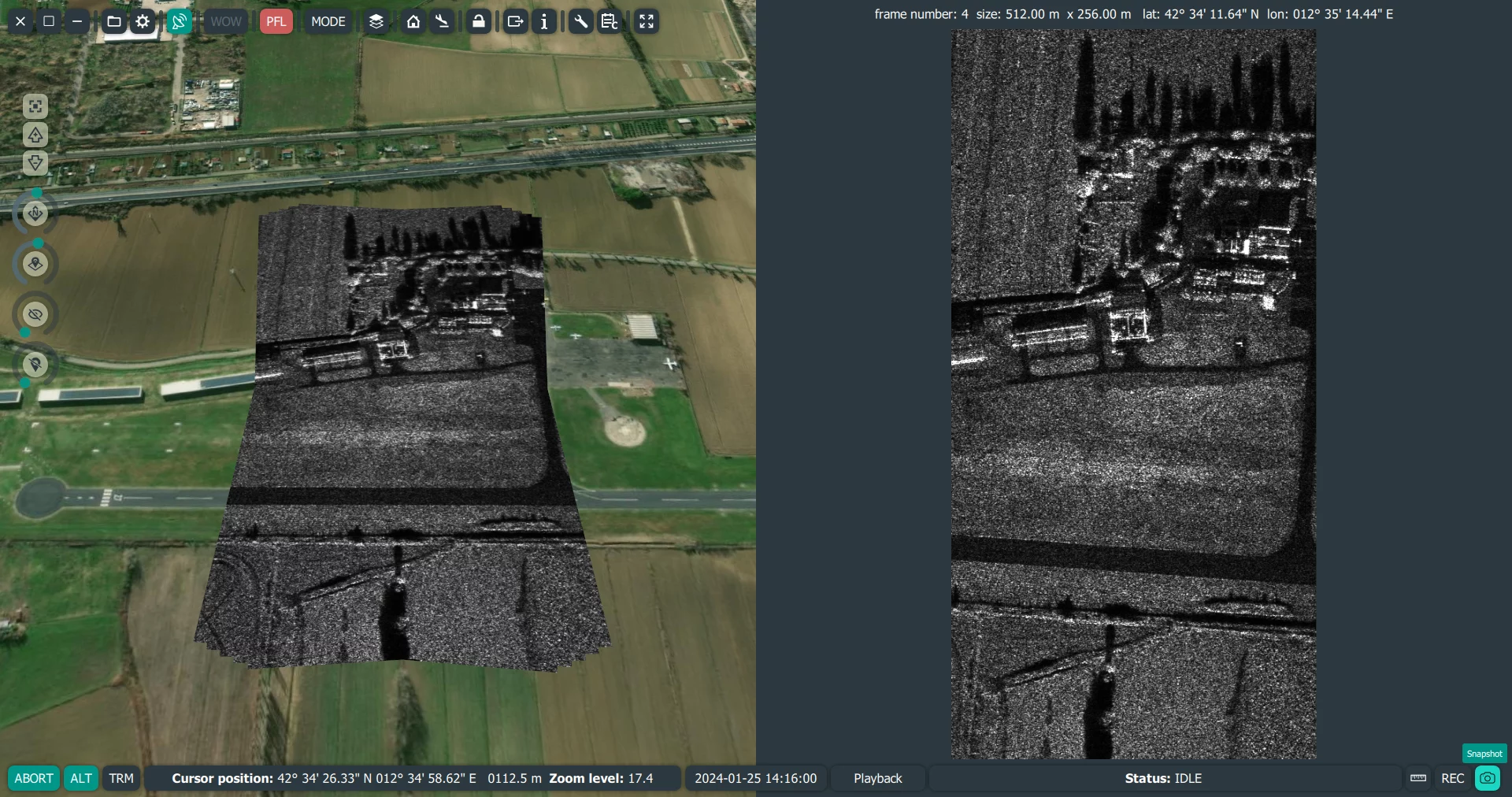

The GUARDIAN features real-time surveillance functions, high resolution SAR imaging (Scanning, Stripmap, Spotlight), Ground Moving Target (GMTI) and Maritime Moving Target Indicator (MMTI).
The multichannel technology allows top-class performances with compact and light geometry and wide azimuth and elevation angles, covering air-to-surface and air-to-air environments.
Your ultimate solution for advanced SAR Imaging
Advanced capabilities for surveillance and detection

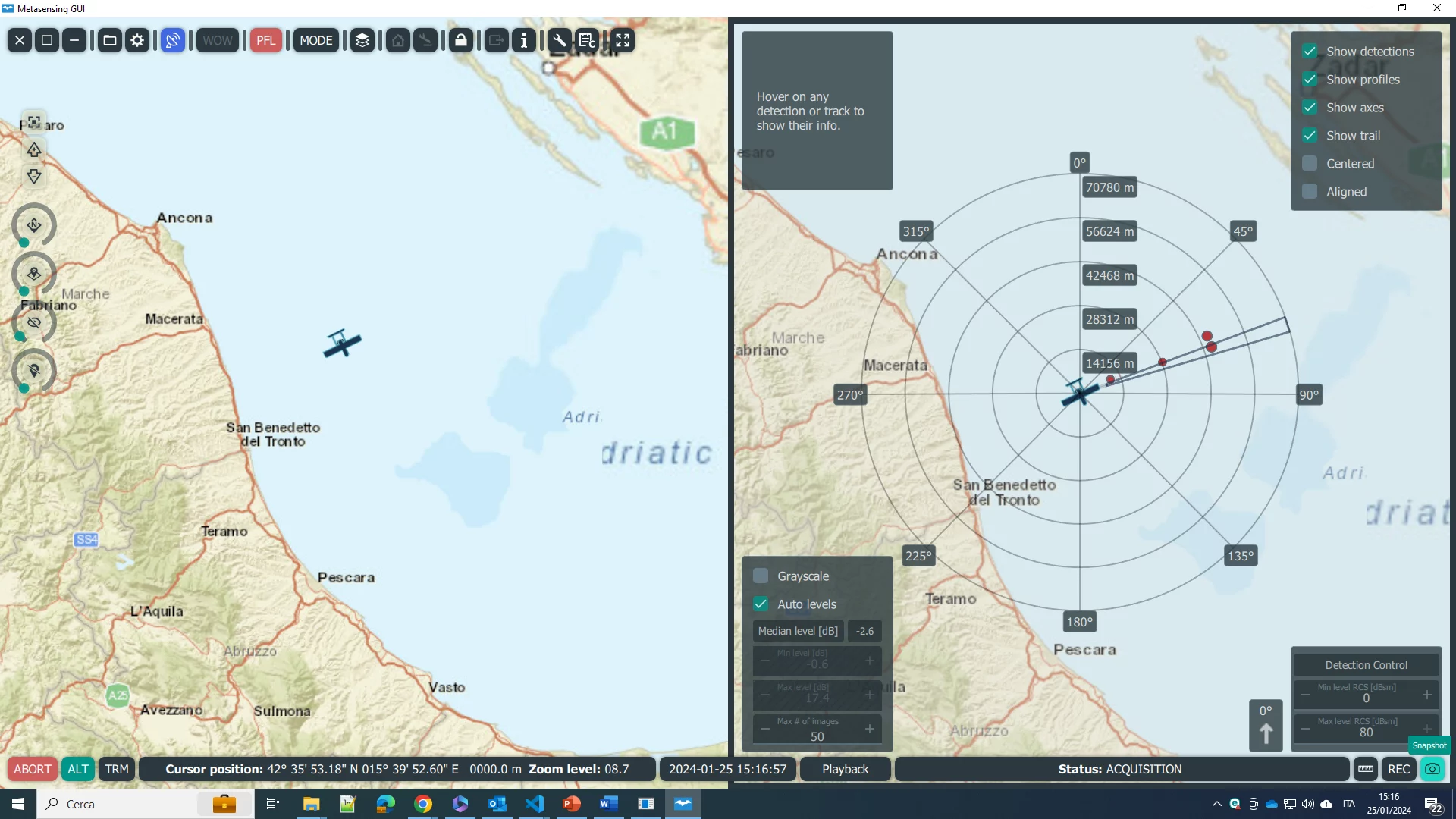

The Guardian is a lightweight, featuring hybrid scanning and advanced MTI for real-time, precise tracking of moving targets on land and water.
High-resolution imaging and flexible configuration

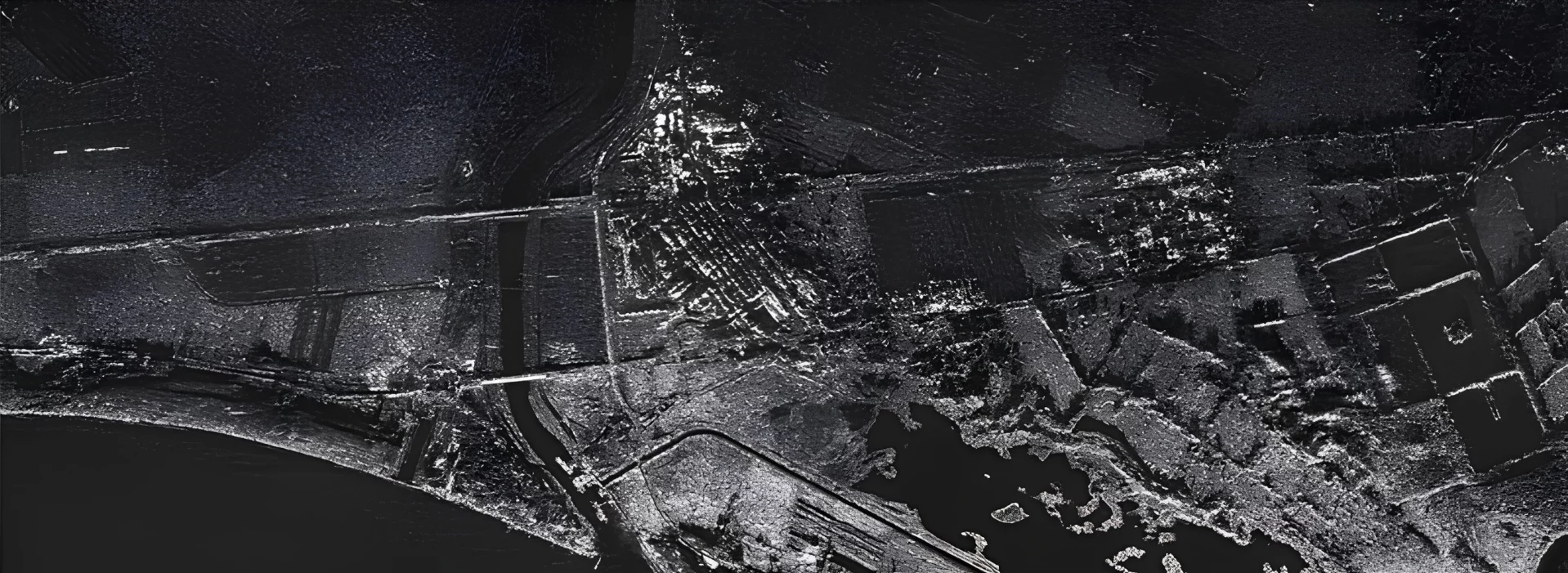

The Guardian delivers high-resolution SAR images for precise target classification in any weather and at all times, using three compact that allow flexible, lightweight installation on platforms or in pods, adapting to various operational needs.
Versatility for modern airborne platforms
The Guardian provides all-weather, high-resolution surveillance for different airborne platforms, featuring a compact design for easy integration, with scalable versions to meet specific needs.
Technical data
Frequency |
X-band (9.5GHz) |
Bandwidth |
Up to 1 Gz |
Coverage (Installation Dependant) |
Fixed installation or Az. ± 170 deg, El. 45 deg |
Maximum Range |
60 km (imaging) 120 km (detection) |
Ground Resolution |
Up to 0.3 m |
Modulation Type |
Arbitrary Waveforms |
Number of Channels |
4 |
Weight |

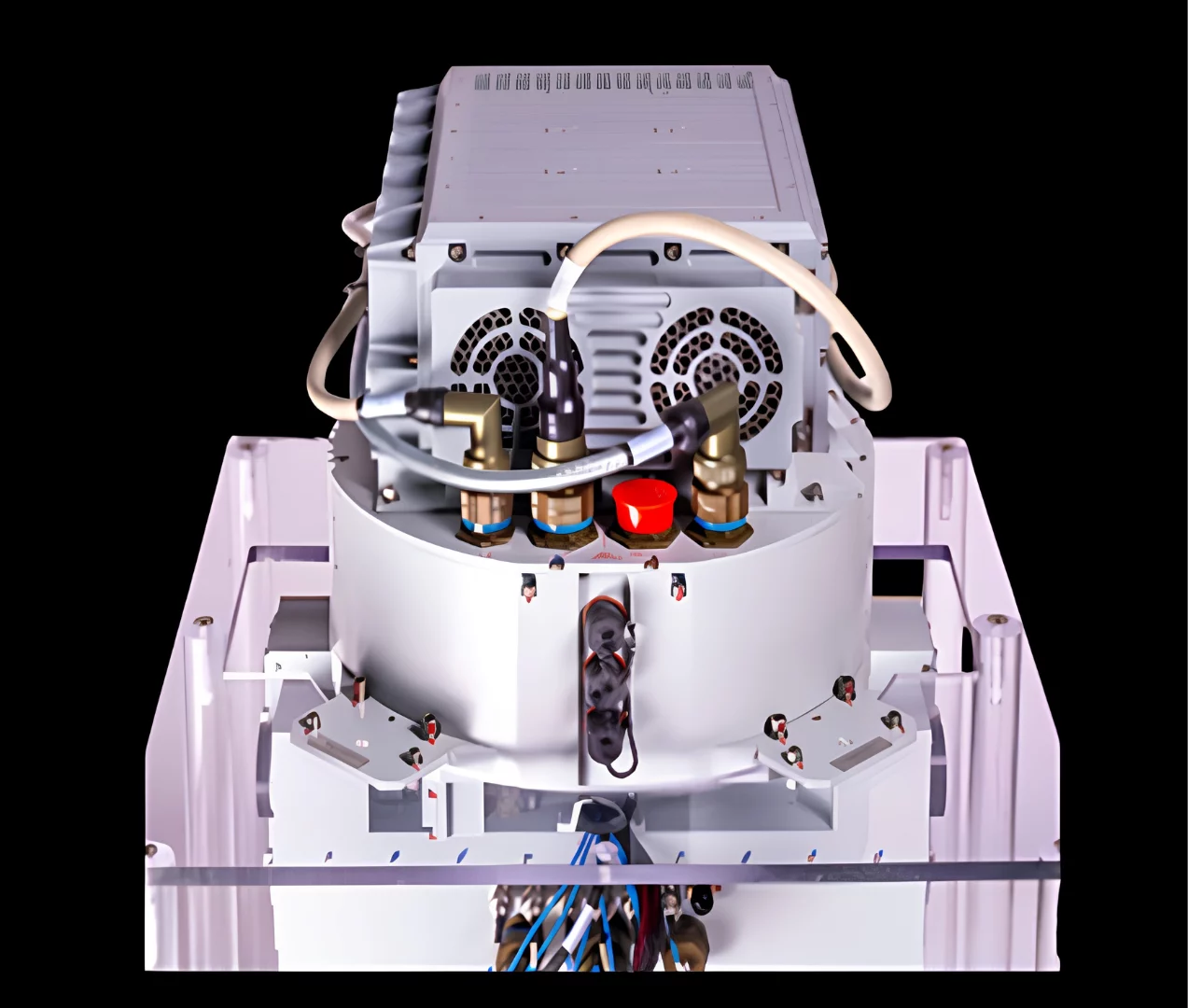

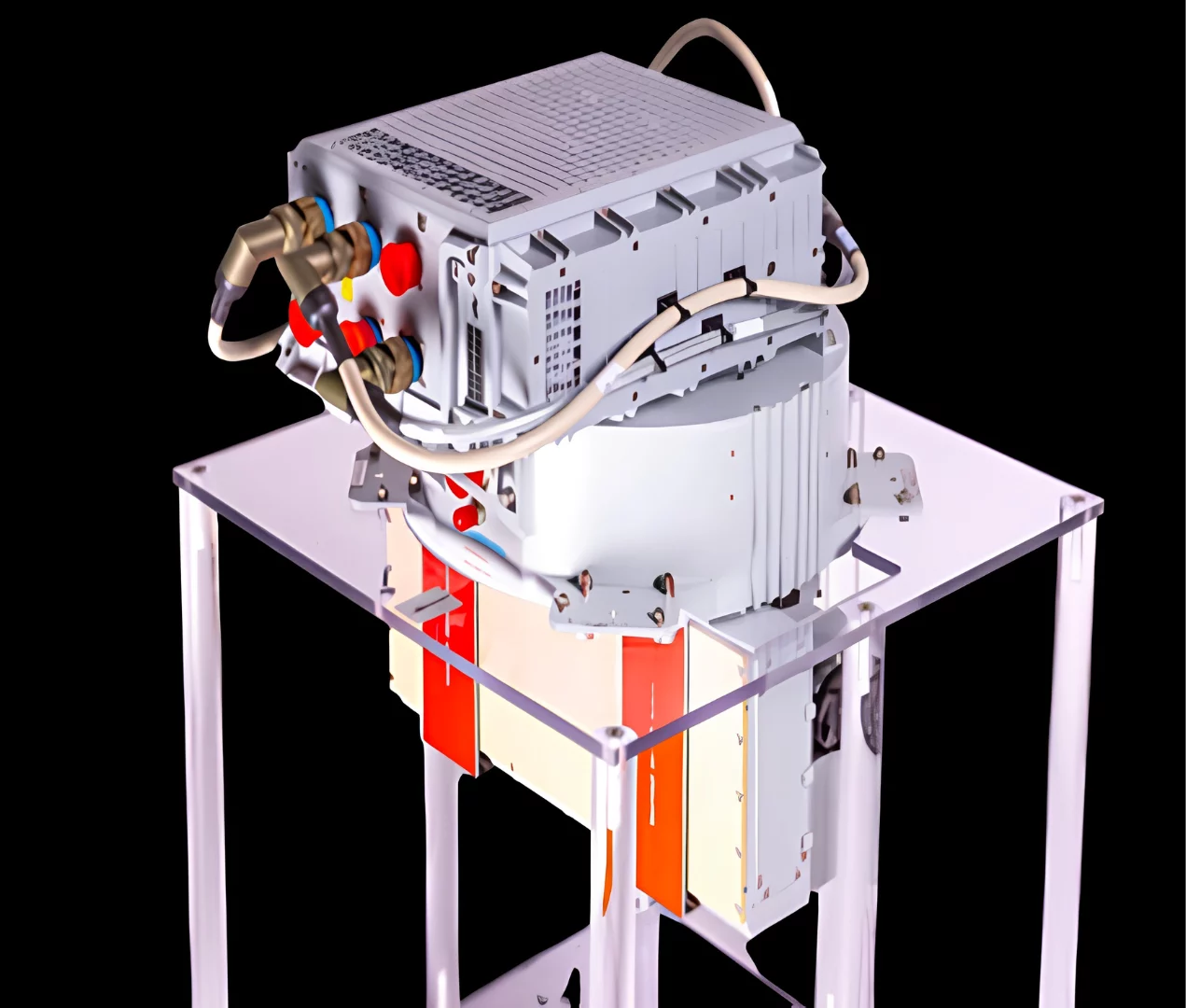

37 kg (processor, stator, antenna) - 24 kg (processor, antenna) |
Cooling |
Unconditioned Air (internal fans) |
Interfaces |
Ethernet, Power, GPS Antenna |
Operational Modes |

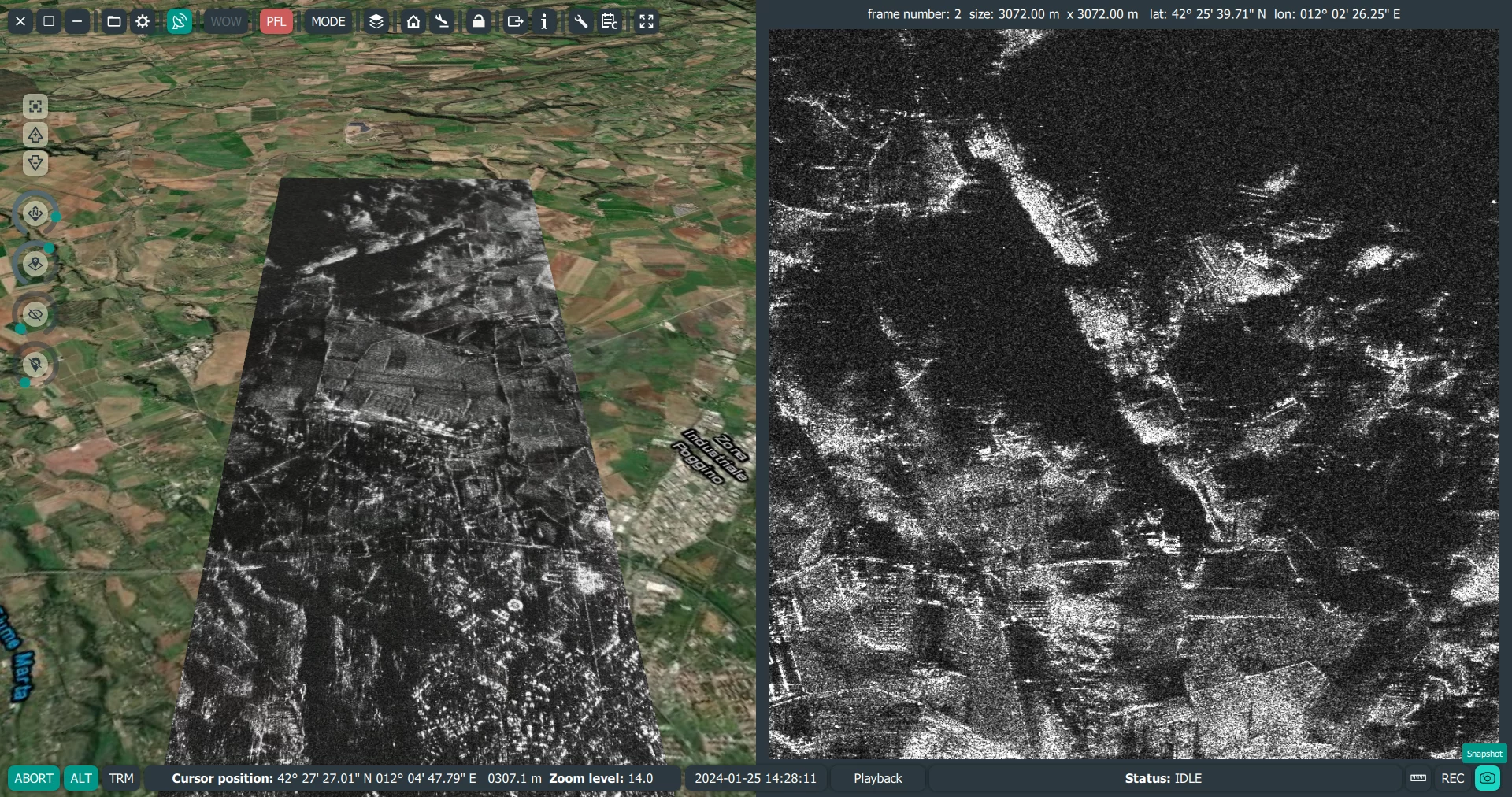

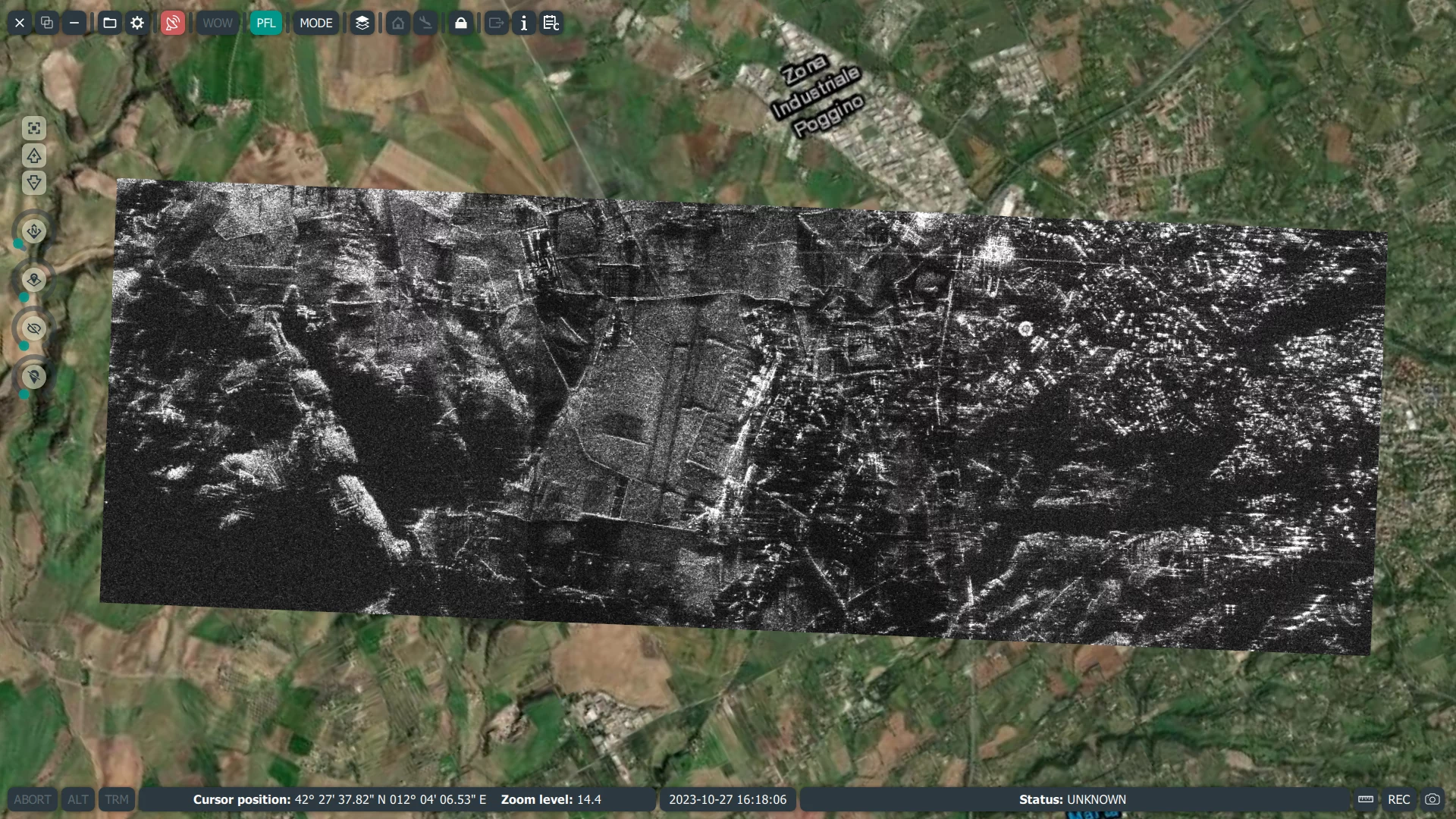

Stripmap, Spotlight, GMTI, MMTI, ISAR, Sea Surveillance, Ground Mapping |
MTI (Moving Target Indicator) |
Ground, Maritime, Dismount |
Additional Features |
Weight-on-Wheel, BIT, multicast, multi-maps |
Standards |
TANAG 7023 (imaging) - STANAG 4607 (MTI) - MIL-STD-810H - MIL-STD-461G |
Key features
- Disruptive innovative SAR Real Time focuser
- Embedded Inertial Navigation System (INS)
- Heterogeneous computing (FPGA, CPU, GPU)
- High-resolution imaging (Spotlight, stripmap)
- Real-time detection (GMTI/DMTI/MMTI)
- Ground Mapping, Sea Surveillance

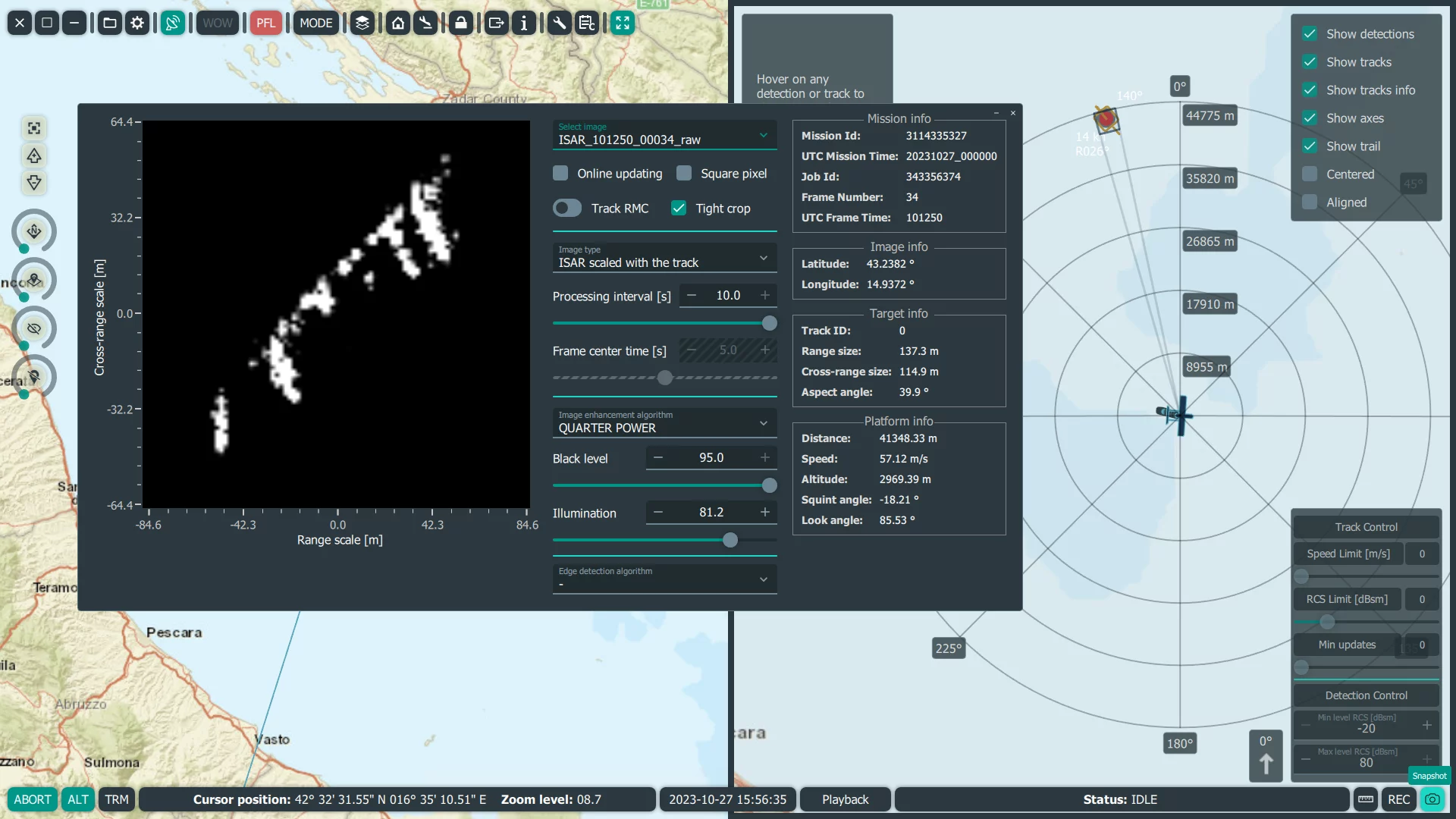

- Advanced classification (ISAR)
Key benefits
- Disruptive innovative SAR Real Time focuser
- Embedded Inertial Navigation System (INS)
- Heterogeneous computing (FPGA, CPU, GPU)
- High-resolution imaging (Spotlight, stripmap)
- Real-time detection (GMTI/DMTI/MMTI)
- Ground Mapping, Sea Surveillance
- Advanced classification (ISAR)
Application
- Data collection and intelligence
- Surveillance and Reconnaissance
- Search and Rescue applications
- Disaster monitoring and recovery
- Maritime and border surveillance
- Mapping and monitoring
- Illegal trafficking monitoring
